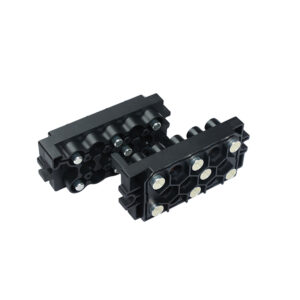

The JDS-05 series modular power connector products adopt an advanced crown spring jack structure, and the surface is silver-plated or gold-plated to ensure product contact reliability. It has the characteristics of reliable connection, soft plugging and unplugging, small plugging and unplugging force, low contact resistance, high through-current, and excellent performance, meeting the needs of customers in different use occasions. The product supports hot plugging, soft plugging and unplugging, and has good dynamic contact reliability. It is completely interchangeable with similar products of TYCO, AMP, FCI and AVIC Optronics, and is widely used in communications, power, UPS, charging piles, photovoltaics and other fields. Some products have passed UL certification, UL file number E470398.
Electrical characteristics
Rated voltage:  Φ5 contact 380 Vac / 1000Vac
Withstand voltage: Normal Φ5 hole 1500Vac / 3000Vac
Wet and hot state  Φ5 hole 500Vac
Insulation resistance: Normal ≥3000MΩ Wet and hot state ≥100MΩ
Mechanical properties
Contact fixity: ≥98N, duration 10s
Mechanical life: 500 times
Working environment
Working temperature: -55～125℃
Relative humidity: 98% (at 40℃)
Vibration: 10～2000Hz (acceleration 147m/s2)
Shock: acceleration 980 m/s2
