Product Information

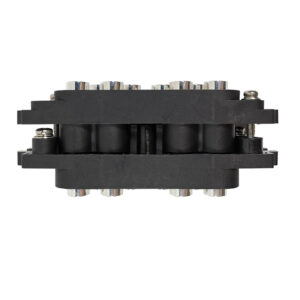

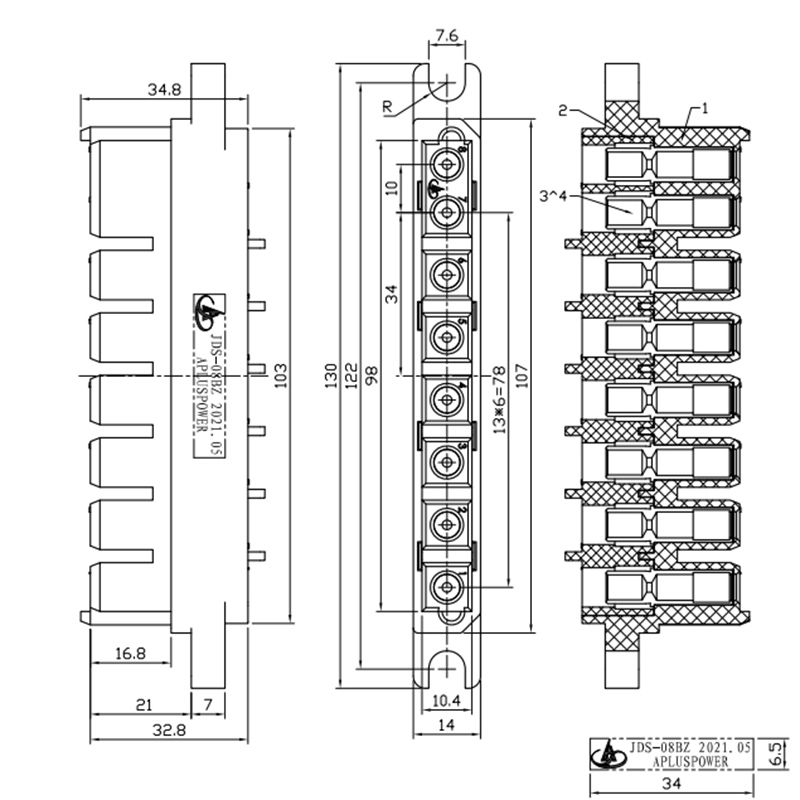

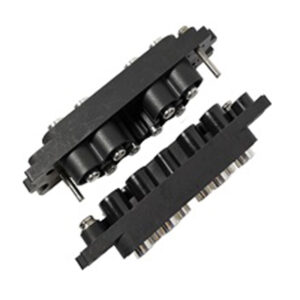

Model: JDS-08
Contact size Φ5.0
Number of pins 8
Rated current (A) 85A
Rated voltage (V) 1000V
Contact resistance (mΩ) ≥0.75
Withstand voltage (V) 1000/3000
Surface material Silver-plated surface, nickel-plated bottom
Terminal type Right-angle through-board welding for connector end Crimp type (Y), board type (B), and welding type (H) are available for selection at the socket end
Operating environment Inside the cabinet
Operating temperature –55 to +125℃
Relative humidity 98% (40℃)
Swing 10～2000Hz (acceleration 147m/s2)
Vibration Acceleration 980m/s2″
Applicable to energy storage stacked power products, battery formation detection equipment, high current and high power products
The JDS-08 series module power connector products adopt the advanced crown spring jack structure, and the surface is silver-plated or gold-plated to ensure the contact reliability of the product. It has the characteristics of reliable connection, soft plugging and unplugging, small plugging and unplugging force, low contact resistance, high through-current, excellent performance, etc., which can meet the needs of customers in different use occasions. The product supports hot plugging, soft plugging and unplugging and has good dynamic contact reliability. It can be completely interchangeable with similar products of TYCO, AMP, FCI and AVIC Optronics, and is widely used in communications, power, UPS, charging piles, photovoltaics and other fields. Some products have passed UL certification, UL file number E470398.
