أطلقت Dian Sanyuan موصل وحدة الشحن عالي الطاقة بقدرة 30-80 كيلو وات لتسريع تخطيط شبكة الشحن فائقة السرعة لمركبات الطاقة الجديدة

مع الترويج الكامل لاستراتيجيات ذروة الكربون الوطنية وحياد الكربون, the new energy vehicle industry has entered a new stage of rapid development. In order to meet the strong market demand for high-power super charging piles, Shenzhen Diansanyuan Company has innovatively launched high-performance connectors suitable for 30KW to 80KW charging modules, helping the industry to achieve faster and more efficient charging solutions.

Adapt to multiple scenarios and meet diverse power requirements

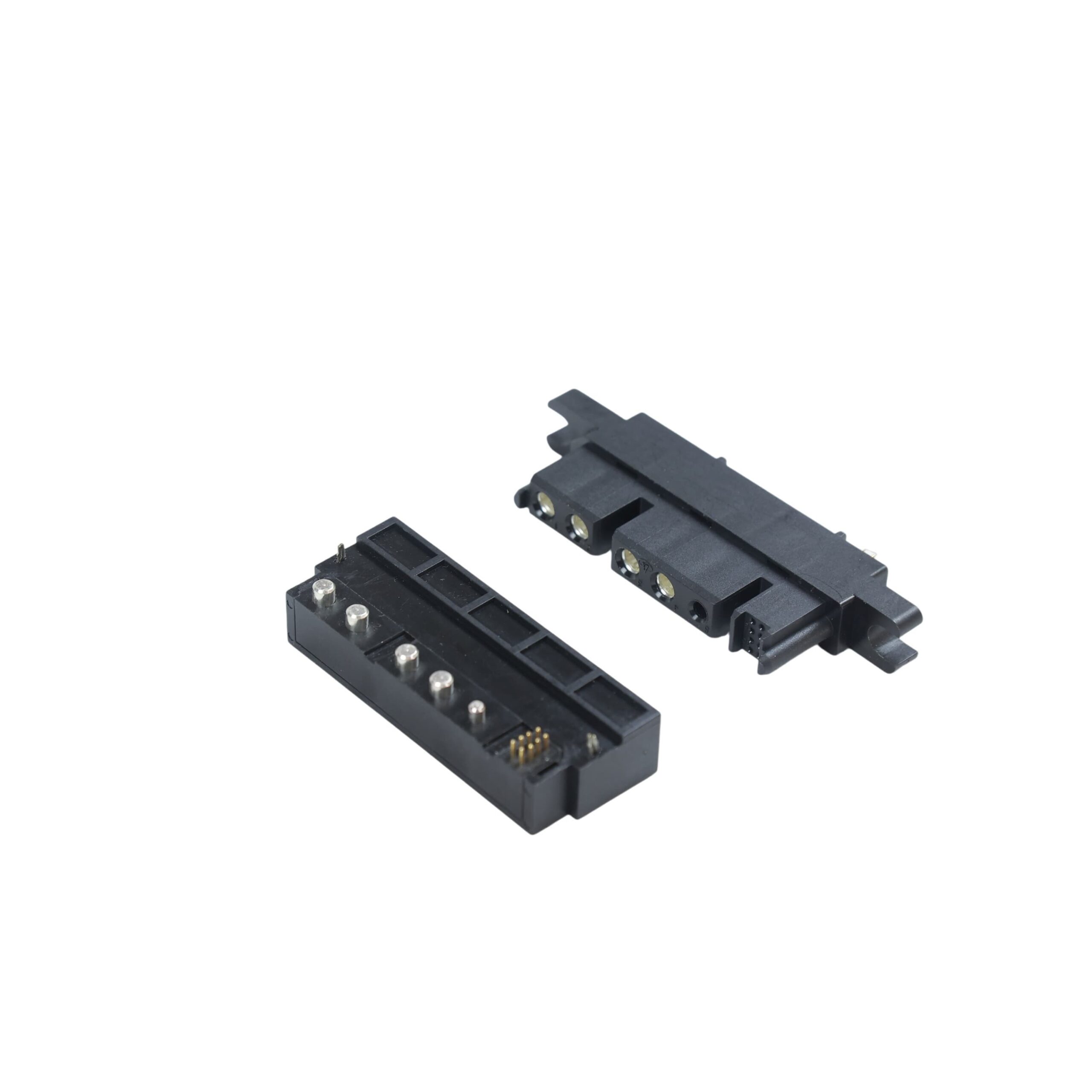

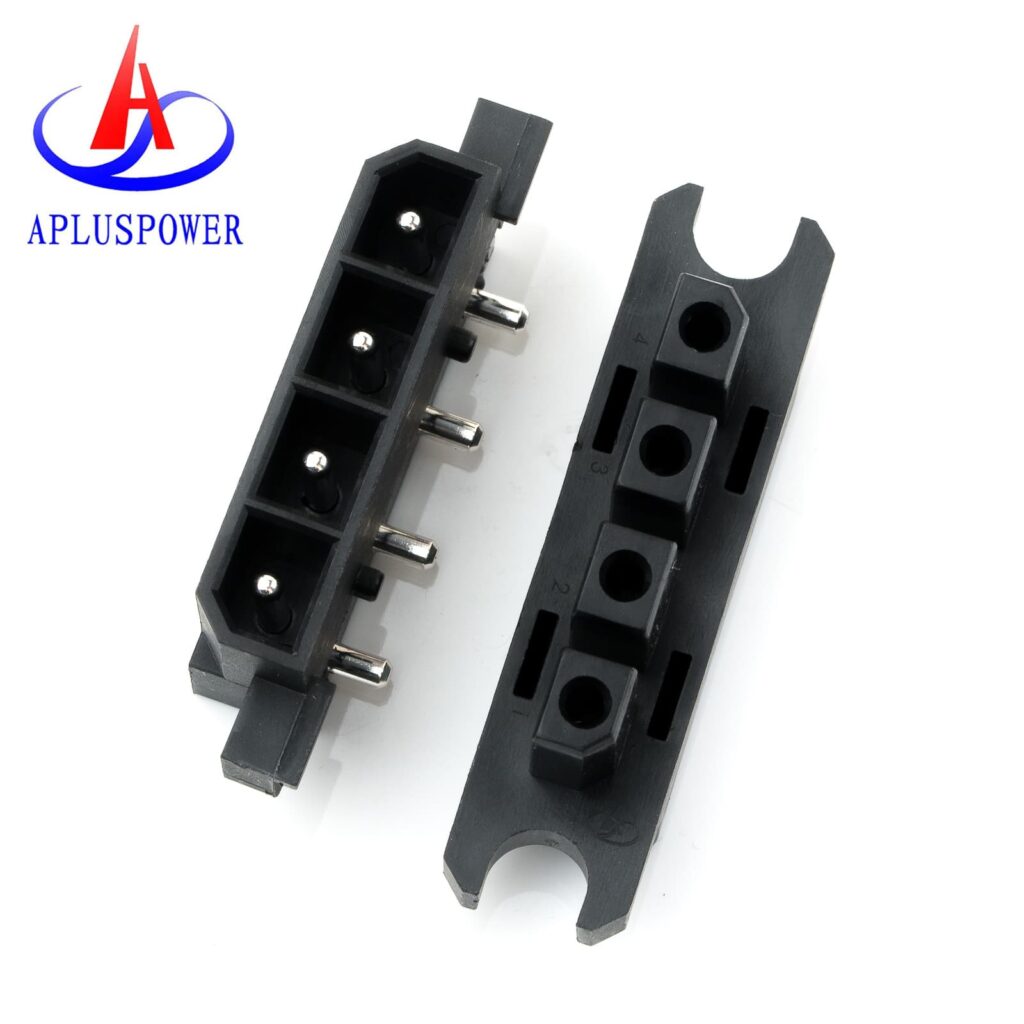

The charging module connector released by Diansanyuan this time covers a power range of 30/40KW to 80KW, fully meeting the application requirements of different charging piles. The connector design takes into account the two key parts of the input and output ends:

JDS-04 model is for the input end of the charging pile module and supports 30/40-60KW power input;

The JDS-14 model is for the output end of the charging pile module and is suitable for 30/40-60KW power output.

Strong performance indicators to ensure safe and stable transmission
The rated current of the connector input end is 80-120A/pin, the output end supports 80-120A/pin or 200A/2pin, and the rated voltage can reach up to 1000Vac/DC. The high-conductivity copper alloy and advanced crown spring structure design not only ensure the efficient transmission of current, but also effectively reduce the contact resistance, ensuring the reliability of connection and the safety of equipment operation.

High-quality materials and certification guarantee
The product uses insulating materials that meet the UL94-V0 flame retardant grade to improve the safety of use. It has passed international certifications such as TUV, أول, and ROHS, meets the high standards of the industry, and helps customers to safely deploy high-power charging pile systems.

Detail optimization to improve installation convenience
The connector structure is scientifically designed, the plug adopts bent welding, the socket adopts a straight crimping structure, the power wire diameter supports 6-3 AWG, and the signal end supports welding and crimping. Multiple connection methods. After the socket is installed, it has floating space in conjunction with the screw, which improves the flexibility of equipment assembly and the convenience of maintenance.

Through the launch of the 30-80KW high-power charging module connector, Dian Sanyuan Company actively responded to the upgrading needs of the new energy vehicle industry and promoted the development of charging infrastructure to higher power and faster speed. في المستقبل, the company will continue to deepen the charging connection technology and help the green transportation and smart energy industries to flourish.

For more product details and cooperation matters, please contact Dian Sanyuan sales team or visit the official website.
